Background

This lesson demonstrates how to configure the iOS OpenVPN client to authenticate with certificates and configure the SOCKS proxy.

Prerequisites

  • Device with iOS 9.0 and up
  • Internet connectivity and Apple ID to access App Store and download OpenVPN application.
  • Hosted a .pac file on a Web Server

On iOS is possible to create TUN tunnels only, as TAP tunnels are not supported by the operating system itself. For more information, please refer to OpenVPN iOS client FAQs. The OpenVPN server instance has to be configured to use TUN device.

Step by Step Tutorial

OpenVPN Connect Setup

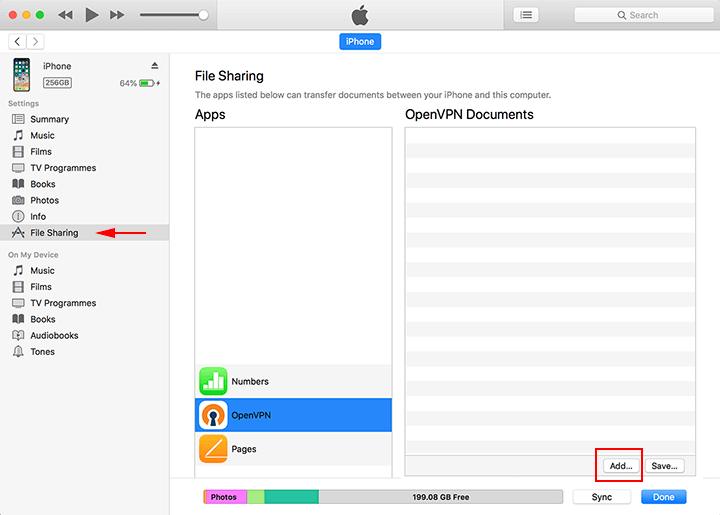

  1. Open iTunes on your computer, connect your iPhone or iPad, click on “File Sharing” and select “OpenVPN”. Then click on “Add…”.
    upload successful

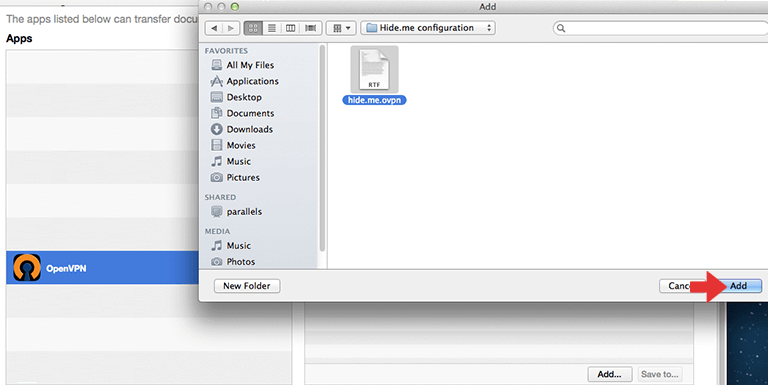

  2. Download the OpenVPN configuration file, unzip it and select the .ovpn file. Then click on “Add”.
    upload successful

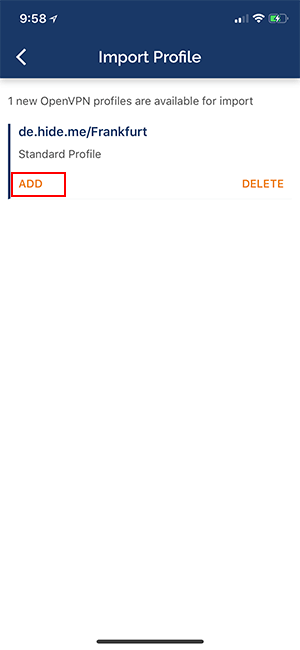

  3. Install the profile in OpenVPN Connect, for that click on the green plus button.
    upload successful

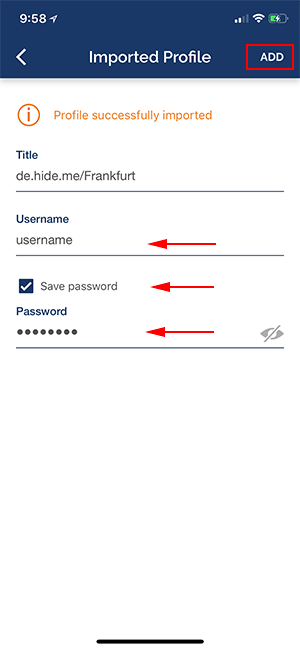

  4. Enter your login credentials and click on the “Add” button. Optionally you can save your password.
    upload successful

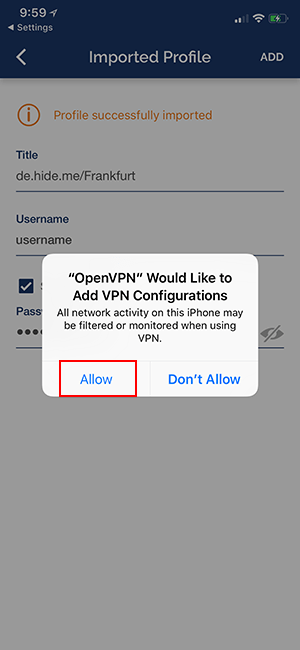

    A dialog window will open asking you to allow the OpenVPN iOS application to add a VPN configuration to the system. This is a default warning message advising you that your network connection will be redirected over the VPN and you can safely tap “Allow”.
    upload successful

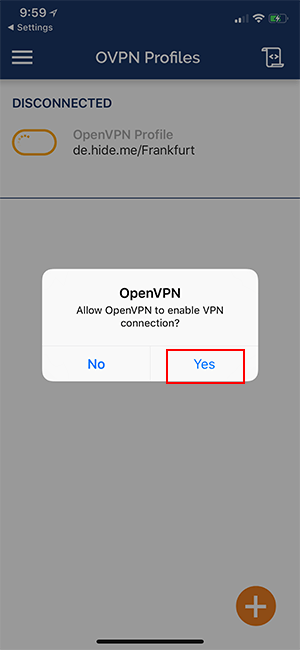

  5. When activating the connection, a dialog window will ask you to confirm that you want to enable the connection to VPN. Confirm with “Yes”.
    upload successful

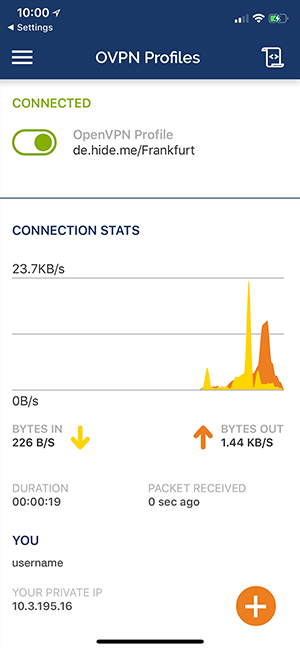

  6. If connection has been successfully established, the status is shown in the menu bar. You can manage your VPN connection with the OpenVPN app.
    upload successful

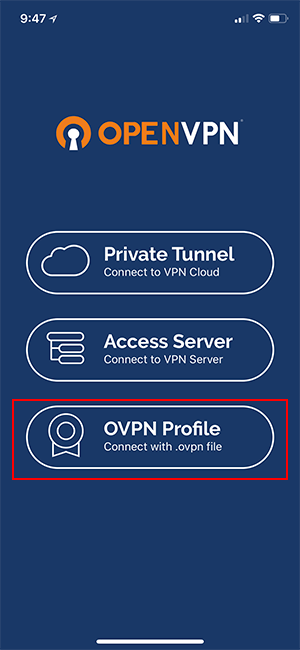

  7. Afterwards you can easily access that profile by clicking on “OVPN Profile” in “OpenVPN Connect” app.
    upload successful

SOCKS proxy Setup

  1. Open up settings > wifi.

  2. Click on the blue arrow next to your wifi connection.

  3. Scroll to the bottom where there is a section for HTTP Proxy.

  4. Select Auto from this section.

  5. In the URL field, key in the URL of the *.pac file you created and made web-accessible.

Reference

  1. OpenVPN

  2. SOCKS

  3. Proxy_auto-config

  4. 如何下载OpenVPN

  5. How To Use a .pac File in iOS

  6. How to Setup OpenVPN on iPad / iPhone

  7. How To Configure IOS OpenVPN Client With Certificate Authentication

  8. How to connect an iOS device to your computer via a SOCKS proxy
